Drainage Solutions for Contractors, Landscapers and Homeowners

It is critical for commercial, municipal and residential properties to have successful drainage systems. When the right products are installed properly, water can be controlled, detained or redirected in order to prevent flooding and erosion.

Types of Drainage Solutions

NDS is the leading provider of high quality and innovative drainage solutions. As an NDS dealer, we are able to supply you Pro-Series products to at competitive prices. We supply the full NDS product line which includes hundreds of drainage solutions for landscapes, hardscapes, driveways, roadways and athletic fields.

Below you will find a sample of several popular NDS drainage solutions. If you don’t see the product you’re looking for, contact our sales team to receive information and pricing on the products you need.

NDS Catch Basin, all in one drainage solution

Catch Basin

A catch basin collects water and diverts it away from structures and poor drainage areas. Catch basins are used for commercial and residential drainage applications including lawns, landscapes, hardscapes, driveways and garages.

The injection molded basin is made from durable HDPE and is UV-resistant. Each basin is manufactured with two, three or four openings. Choose from a variety of finishes (plastic, steel or iron) and colors for a grate that suits your project’s needs.

Purchase catch basin products separately if you need a custom drainage solution or choose a kit that includes everything you need in one box.

Catch Basin Kit

Catch Basin Kit

Every catch basin kit includes a two-opening catch basin, grate, outlets and plug.

Catch Basin Kit with 2 openings

Catch Basin

Catch Basins are manufactured in 9″, 12″, 18″ and 24″ squares with 2 to 4 openings.

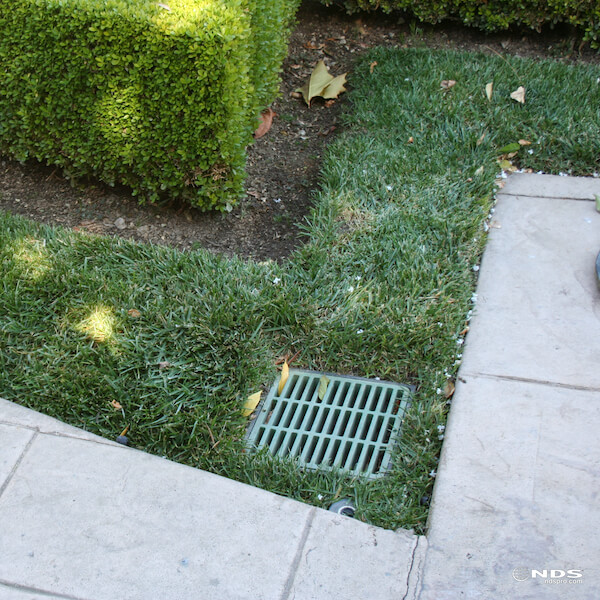

Green Catch Basin Grate

Catch Basin Grates

Close your basin with a plastic, decorative, cast iron, steel or atrium grate.

Adapter for NDS drainage solutions

Fittings and Adapters

If you purchase basin and grates separately, don’t forget the adapters and plugs.

DescriptionItem Code
9″ Catch Basin Kit with Black Grate 900BLKIT
9″ Catch Basin Kit with Green Grate900GRKIT
12″ Catch Basin Kit with Black Grate1200BLKIT
12″ Catch Basin Kit with Green Grate1200GRKIT
18″ Catch Basin Kit with Black Grate1882BLKIT
18″ Catch Basin Kit with Green Grate1882GRKIT
24″ Catch Basin Kit with Black Grate2400BLKIT
24″ Catch Basin Kit with Green Grate2400GRKIT
DescriptionItem Code
9″ Catch Basin – 2 openings 900
9″ Catch Basin – 4 openings900-4
12″ Catch Basin – 2 openings1200
12″ Catch Basin – 3 openings1203
12″ Catch Basin Kit – 4 openings1204
18″ Catch Basin – 2 openings1882
18″ Catch Basin – 4 openings1884
24″ Catch Basin – 2 openings2400
24″ Catch Basin – 4 openings2404
Description Item Code
6″ Outlet Plug 1206
3″ and 4″ Universal Locking Adapter 1243
3″ x 4″ Offset Outlet Adapter 1245
6″ Universal Locking Outlet 1266
8″ Universal Outlet 1888
Universal Outlet Reducer Ring 1890

Standard Grates for Catch Basins

Sand Catch Basin Grate

Sand Grate

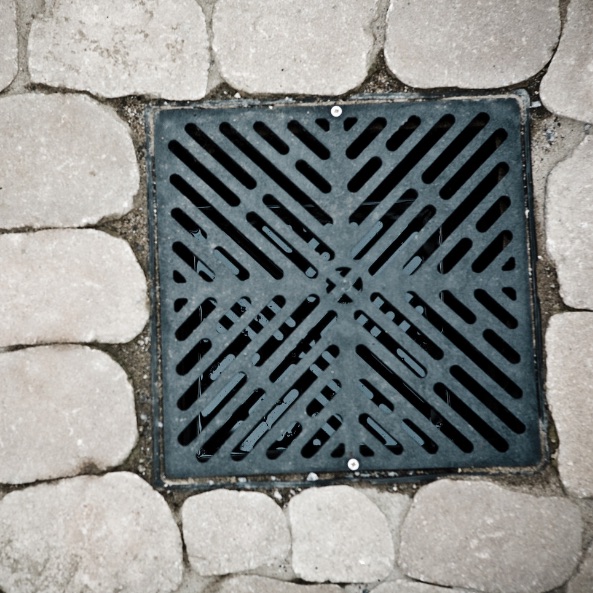

Black Catch Basin Grate

Black Grate

Green Catch Basin Grate

Green Grate

Gray Catch Basin Grate

Gray Grate

Cast Iron Catch Basin Grate

Cast Iron Grate

Galvanized Steel Catch Basin Grate

Galvanized Steel Grate

Botanical Grates for Catch Basins

Botanical Sand Catch Basin Grate

Sand Grate

Botanical Black Catch Basin Grate

Black Grate

Botanical Green Catch Basin Grate

Green Grate

Botanical Gray Catch Basin Grate

Gray Grate

Decorative Wave Grates for Catch Basins

Wave Sand Catch Basin Grate

Sand Grate

Black Wave Catch Basin Grate

Black Grate

Green Wave Catch Basin Grate

Green Grate

Gray Wave Catch Basin Grate

Gray Grate

DescriptionItem Code
9″ x 9″ Catch Basin Grate, Green 990
9″ x 9″ Catch Basin Grate, Black980
12″ x 12″ Catch Basin Grate, Green1212
12″ x 12″ Catch Basin Grate, Black1211
12″ x 12″ Catch Basin Grate, Gray1210
12″ x 12″ Catch Basin Grate, Sand1212S
12″ x 12″ Catch Basin Grate, Cast Iron1213
12″ x 12″ Catch Basin Grate, Galvanized Steel1215
12″ x 12″ Catch Basin Decorative Botanical Grate, Green1218GR
12″ x 12″ Catch Basin Decorative Botanical Grate, Black1218
12″ x 12″ Catch Basin Decorative Botanical Grate, Gray1218GY
12″ x 12″ Catch Basin Decorative Botanical Grate, Sand1218S
12″ x 12″ Catch Basin Decorative Botanical Grate, Cast Iron1218CI
12″ x 12″ Catch Basin Decorative Wave Grate, Green1224GR
12″ x 12″ Catch Basin Decorative Wave Grate, Black1224
12″ x 12″ Catch Basin Decorative Wave Grate, Gray1224GY
12″ x 12″ Catch Basin Decorative Wave Grate, Sand1224S
12″ x 12″ Catch Basin Decorative Wave Grate, Cast Iron1224CI
12″ x 12″ Catch Basin Atrium Grate, Green1280
12″ x 12″ Catch Basin Atrium Grate, Black1290
18″ x 18″ Catch Basin Grate, Green1812
18″ x 18″ Catch Basin Grate, Black1811
18″ x 18″ Catch Basin Grate, Green1810
24″ x 24″ Catch Basin Grate, Green2412
24″ x 24″ Catch Basin Grate, Black2411
24″ x 24″ Catch Basin Grate, Cast Iron2413

EZ-Flow Gravel Free Drainage Solution

EZ-Flow pipe is a gravel-free French Drain alternative. Use this lightweight drainage solution for retaining walls, landscape drains, sports fields and basement dewatering. EZ-Flow is a great trench drain alternative for hard to reach jobs that are difficult to access with heavy machinery.

Each EZ-Flow unit contains a corrugated drainage pipe that is surrounded by poly-rock and encased in geotextile fabric. The slotted corrugated drainage pipe is 3”, 4” or 6” in diameter and 10 feet long. EZ-Flow’s poly-rock fill is lightweight, crush proof and has a 30% better flow rate than traditional gravel-and-pipe.

DescriptionItem Code
EZ-Flow 15″ x 10′ with 6″ Slotted Pipe (bottom) EZ-1501FB
EZ-Flow 15″ x 10′ with 6″ Slotted Pipe (center)EZ-1501F
EZ-Flow 15″ x 10′ without pipeEZ-1501A
EZ-Flow 10″ x 10′ with 4″ Slotted PipeEZ-1001F
EZ-Flow 10″ x 10′ without pipeEZ-1001A
EZ-Flow 7″ x 10′ with 3″ Slotted PipeEZ-0701F
EZ-Flow 7″ x 10′ without pipeEZ-0701A

Pop Up Emitter in the ground

Pop-Up Emitter

The Pop-Up Emitter helps water from Catch Basins, Flo-Wells, EZ-Flow Pipe and downspouts flow to safe drainage location. Corrugated drainage pipe connects the Pop-Up Emitter to these drainage structures.

As water flows towards the Pop-Up, the spring-loaded cap pops open to allow water to discharge. When flow has diminished, the top closes. This innovative pop-top design keeps out rodents and debris while maintaining a low-profile that won’t conflict with lawn mowers or your landscape design.

NDS Pop Up Emitter

Pop Up Emitter with Elbow

Elbow available in 3″ or 4″ to fit 3″ or 4″ drain pipe and sewer pipe. Compatible with Pop Up Drainage Emitter

Pop Up Emitter with Universal Adapter

Pop Up Emitter with Elbow and Universal Adapter

Universal Adapter fits 3″ and 4″ corrugated pipe, 3″ and 4″ sewer and drain pipe,
4″ Sch. 40 pipe, and 3″ and 4″ triple wall pipe.

Pop Up Emitter with Corrugated Pipe Adapter

Pop Up Emitter with Corrugated Pipe Adapter

6″ elbow, pop up emitter and corrugated pipe adapter fits 6″ corrugated pipe.

Pop Up Drainage Emitter

Pop Up Drainage Emitter

3″, 4″ and 6″ polyolefin spring-loaded
Pop-up Drainage Emitter with UV
inhibitor.

DescriptionItem Code
3″ Pop Up Emitter with Elbow321
4″ Pop Up Drainage Emitter421
3″ and 4″ Pop Up Drainage Emitter420
Pop Up Drainage Emitter with 3″ Elbow and Universal Adapter430
6″ Pop Up Drainage Emitter620
6″ Pop Up Drainage Emitter with Elbow and Corrugated Pipe Adapter624

Channel Drain

Choose from Pro-Series, Mini and Micro Channel Drain. Each series includes a different channel drain, grate options and accessories to create a design that meets your drainage needs.

Pro Series Channel Drain,  residential drainage solution

Pro Series Channel Drain

Pro Series Channel Drain is a top-of-the-line drainage solution for driveways, parking lots, pool decks, and sports facilities. The durable injection molded drain is made from PVC and features UV inhibitors that prevent fading and cracking.

For fast-and-easy installation, try the modular Pro Series Channel Drain Kit that has interlocking joints. Each Pro Series Kit includes everything you need for installation: deep drains, slotted HDPE grates, locking clips, end caps, screws and installation instructions.

If you require a shallow profile, choose form 5”, 8” or 12” channel drains and purchase the grates separately.

Pro Series Cnannel Drain Kit

Pro Series Channel Drain Kit

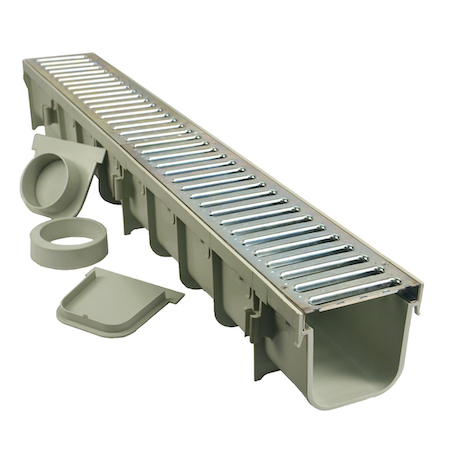

Pro Series Channel Drain Kit with Metal Grate

Pro Series Channel Drain Kit, Metal Grate

PRo Series Channel Drain, Deep Drain

Pro Series Deep Channel Drain

Pro Series Channel Drain, Shallow Drain

Pro Series Shallow Channel Drain

Pro Series Channel Drain Elbow

Pro Series Channel Drain Elbow

Pro Series Channel Drain End Cap

Pro Series Channel Drain End Cap

Pro Series Channel Drain End Outlet

Pro Series Channel Drain End Outlet

Pro Series Channel Drain Side Outlet

Pro Series Channel Drain Side Outlet

DescriptionItem Code
3″ Pro Series Channel Drain Kit764
5″ Pro Series Channel Drain Kit864
5″ Pro Series Channel Drain Kit with Metal Grate864GMTL
3″ Pro Series Deep Profile Channel Drain710
5″ Pro Series Deep Profile Channel Drain800
8″ Pro Series Deep Profile Channel Drain833
12″ Pro Series Deep Profile Channel Drain843
5″ Pro Series Shallow Profile Channel Drain820
8″ Pro Series Shallow Profile Channel Drain830
12″ Pro Series Shallow Profile Channel Drain840
5″ Pro Series Deep Profile 45 Degree Elbow with Grate860
5″ Pro Series Deep Profile 90 Degree Elbow with Grate861
3″ Pro Series Deep Profile End Cap 712
5″ Pro Series Deep Profile End Cap812
3″ Pro Series Deep Profile End Cap/Knock Out End Outlet713
5″ Pro Series Deep Profile End Cap/Knockout End Outlet813
8″ Pro Series Deep Profile End Cap/Knockout End Outlet834
12″ Pro Series Deep Profile End Cap/ Knockout End Outlet844
5″ Pro Series Shallow Profile End Cap/Knock Out End Outlet821
8″ Pro Series Shallow Profile End Cap/Knockout End Outlet831
12″ Pro Series Shallow Profile End Cap/ Knockout End Outlet841
8″ Pro Series Shallow Profile 3″ S&D SPT Side Outlet832
Contact our sales team if they Channel Drain product you need is not listed above

Micro Channel Drain for pool deck

Micro Channel Drain

Micro Channel Drain is a lightweight channel drain for residential pools, spas and patios. The slim design has a recessed grate to capture runoff and water flow.

Snap together Micro Channel Drain, Elbows, Outlets and Adapters for a fast and easy installation.

Each channel drain section is ten-feet long and 1.25″ wide.

White Micro Channel Drain

10′ Micro Channel Drain

White Mico Channel Drain 90 Degree Elbow

Micro Channel Drain 90 Degree Elbow

Gray Mico Channel 45 Degree Bend

Micro Channel Drain 45 Degree Elbow

White Micro Channel Tee

Micro Channel Drain Tee

Micro Channel Drain 1.5" Spigot Bottom Outlet

Micro Channel Drain 1.5″ Spigot Bottom Outlet

Micro Channel Drain 1.5" Sch. 40 Spigot with side outlet

Micro Channel Drain 1.5″ Schd. 40 Spigot with side outlet

Micro Channel Drain Coupling

Micro Channel Drain Coupling

Micro channel drain 1.5” spigot end outlet, white

Micro Channel Drain 1.5” Spigot End Outlet

Micro Channel Drain hold down clips

Micro Channel Drain Hold Down Clip

Micro Channel End Plug, White

Micro Channel Drain End Plug

DescriptionItem Code
10′ Micro Channel White8001
10′ Micro Channel Sand8002
10′ Micro Channel Gray8003
Micro Channel 90 Degree Elbow White8381
Micro Channel 90 Degree Elbow Sand8382
Micro Channel 90 Degree Elbow Gray 8383
Micro Channel 45 Degree Elbow White8301
Micro Channel 45 Degree Elbow Sand8302
Micro Channel 45 Degree Elbow Gray8303
Micro Channel Tee White8371
Micro Channel Tee Sand8372
Micro Channel Tee Gray8373
Micro Channel 1.5″ Spigot Bottom Outlet White8501
Micro Channel 1.5″ Spigot Bottom Outlet Sand8502
Micro Channel 1.5″ Spigot Bottom Outlet Gray8503
Micro Channel 1.5″ Sch. 40 Spigot Side Outlet White8511
Micro Channel 1.5″ Sch. 40 Spigot Side Outlet Sand8512
Micro Channel 1.5″ Sch. 40 Spigot Side Outlet Gray8513
Micro Channel Drain Coupling White8481
Micro Channel 1.5″ Spigot End Outlet White8461
Micro Channel 1.5″ Spigot End Outlet Sand8462
Micro Channel 1.5″ Spigot End Outlet Gray8463
Micro Channel Hold Down Clip White8601
Micro Channel End Plug White8471
Micro Channel End Plug Sand8472
Micro Channel End Plug Gray8473
Contact our sales team if they Channel Drain product you need is not listed above

Mini Channel Drain

Mini Channel Drain

Mini Channel Drain is a slim profile drainage solution for residential pools, patios and tennis courts.

The lightweight 2.75″ wide channel drain is available in six-foot sections. Similar to the Micro Channel Drain, the Mini-series snaps together for a fast and easy installation.

Choose from different color plastic grates including black, gray, brick red, green and sand. Brass and cast iron grates are also available.

Mini Channel Drain with Grate

Mini Channel Drain Tee

Mini Channel Drain 90 Degree Elbow

Mini Channel Drain 45 Degree Elbow

Mini Channel Drain Coupling

Mini Channel Drain Spigot End Outlet

Micro Channel Drain End Cap

DescriptionItem Code
6′ Mini Channel Drain (does not include grate)500
Mini Channel Drain Tee with Gray Grate5370
Mini Channel Drain Tee with Black Grate5372
Mini Channel Drain 90 Degree Elbow with Gray Grate5380
Mini Channel Drain 90 Degree Elbow with Sand Grate5383
Mini Channel Drain 45 Degree Elbow with Gray Grate5300
Mini Channel Drain 45 Degree Elbow with Sand Grate5303
Mini Channel Drain Coupling548
Mini Channel Drain Spigot End Outlet for 2″ Pipe546
Mini Channel Drain End Cap547
Mini Channel Drain 3′ White Grate540
Mini Channel Drain 3′ Gray Grate541
Mini Channel Drain 3′ Green Grate542
Mini Channel Drain 3′ Black Grate543
Mini Channel Drain 3′ Sand Grate544
Mini Channel Drain 3′ Brick Red Grate551
Mini Channel Drain 3′ Black Botanical Grate554
Mini Channel Drain 3′ Green Botanical Grate554GR
Mini Channel Drain 3′ Gray Botanical Grate554GY
Mini Channel Drain 3′ Sand Botanical Grate554S
Mini Channel Drain 3′ Black Wave Grate555
Mini Channel Drain 3′ Cast Iron Wave Grate555CI
Mini Channel Drain 3′ Green Wave Grate555GR
Mini Channel Drain 3′ Gray Wave Grate555GY
Mini Channel Drain 3′ Sand Wave Grate555S
Contact our sales team if they Channel Drain product you need is not listed above

Don’t see the drainage solutions you need?
