Flexamat® Concrete Block Mats

Flexible articulated concrete revetment mats provide long-term vegetated erosion control.

Benefits

Permanent hard armor protection with natural vegetation

Simple and efficient installations

Low-impact development

Low maintenance after vegetated

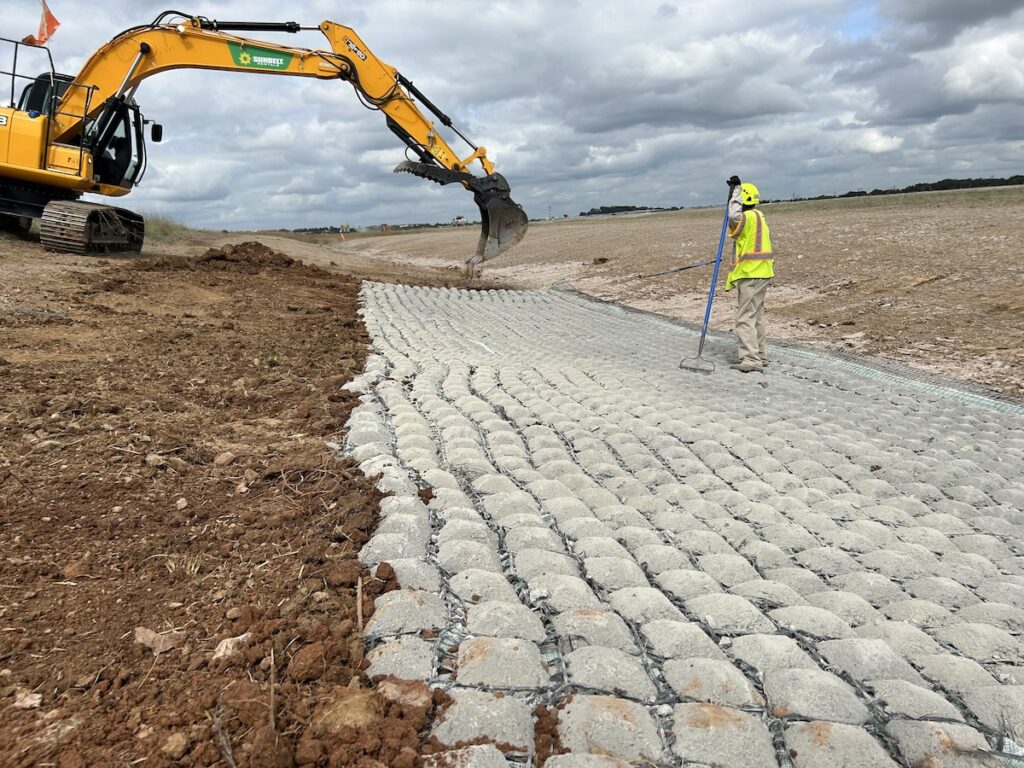

Flexamat plus up close in transition area

Applications

Airport erosion control

Flood control

Roads and highways

Low water crossings

Streambanks and shorelines

Flexamat Standard

Concrete block mat with double-layered underlayment

5-pick Leno weave plus Curlex II erosion blanket

Designed for applications where vegetation growth is sustained year round.

Flexamat Standard articulated concrete block mat features a double-layered underlayment system that includes a 5-Pick Leno Weave and Curlex II erosion control blanket. The Standard underlayment is designed for regions and applications where vegetation growth is sustained year-round.

The Leno Weave locks the underlayment fibers under the Concrete Block Mat in extreme flow and wave conditions.

The biodegradable Curlex fibers are naturally seed free and are specifically designed to promote vegetation establishment. Unlike straw fibers, Curlex does not float because the fibers have a density value greater than 1.0. Additionally, Curlex has a built-in swell factor, where the wood excelsior fibers expand in thickness and interlock to form a strong matrix, while simultaneously retaining moisture to promote ideal growing conditions.

5000 PSI Concrete Blocks

High Strength Biaxial Geogrid

5-Pick Leno Weave

Curlex II Blanket

Block Size	6.5 in x 6.5 in x 2.5 in
Available Widths	4-ft 5.5-ft 8-ft 10-ft 12-ft 15.5-ft 16-ft
Available Lengths	30-foot 40-foot 50-foot Custom
Weight per Unit	10 lb/sf

Concrete block mats with Curlex blanket and Recyclex TRM

Flexamat Plus

Tied concrete block matting with triple-layered underlayment

5-pick Leno weave plus Curlex II erosion blanket and Recyclex turf reinforcement mat

Designed for applications where sparse vegetation growth is expected.

Flexamat Plus articulated concrete block mat features a triple-layered underlayment system that includes a 5-Pick Leno Weave, a Recyclex turf reinforcement mat and a base layer of Curlex II erosion control blanket. The variation is designed for applications with limited turf establishment like arid climates, drought-prone environments, heavily shaded areas or sites with poor soil conditions.

The Leno Weave locks the underlayment fibers under the Concrete Block Mat in extreme flow and wave conditions.

The extra layer of Recyclex TRM provides additional reinforcement and like Curlex fibers, Recyclex does not float.

5000 PSI Concrete Blocks

High Strength Biaxial Geogrid

5-Pick Leno Weave

Recyclex Turf Reinforcement Mat

Curlex II Erosion Blanket

Block Size	6.5 in x 6.5 in x 2.5 in
Available Widths	4-ft 5.5-ft 8-ft 10-ft 12-ft 15.5-ft 16-ft
Available Lengths	30-foot 40-foot 50-foot Custom
Weight per Unit	10 lb/sf

Flexamat 10NW

Concrete block mat with nonwoven geotextile underlayment

Biaxial geogrid and 10.0 oz. nonwoven geotextile

Designed for drivable surfaces or application where growth is not desired

The Flexamat 10NW is manufactured with articulated concrete blocks cast onto a 10oz. non-woven geotextile underlayment that is adhered to the back of each block.

This backing is used in arid areas, applications where growth is not desired or when the mat is being used as a drivable surface. Flexamat 10NW can also be installed over plastic liners. The fabric provides a protective barrier between the liner and the concrete blocks.

5000 PSI Concrete Blocks

High Strength Biaxial Geogrid

10.0 oz. Nonwoven Geotextile

Block Size	6.5 in x 6.5 in x 2.5 in
Available Widths	4-ft 5.5-ft 8-ft 10-ft 12-ft 15.5 ft 16-ft
Available Lengths	30-foot 40-foot 50-foot Custom
Weight per Unit	10 lb/sf

Compare Concrete Block Mats

	Standard	Plus	10NW
Composition	Concrete block mats Biaxial Geogrid 5-Pick Leno Weave Curlex II ECB	Concrete block mats Biaxial Geogrid 5-Pick Leno Weave Recyclex TRM Curlex II ECB	Concrete block mats Biaxial Geogrid Nonwoven Geotextile
Typical application	Sites where vegetation establishment is desired	Applications with limited vegetation – poor soils	No vegetation desired
Block Size	6.5 in x 6.5 in x 2.5 in	6.5 in x 6.5 in x 2.5 in	6.5 in x 6.5 in x 2.5 in

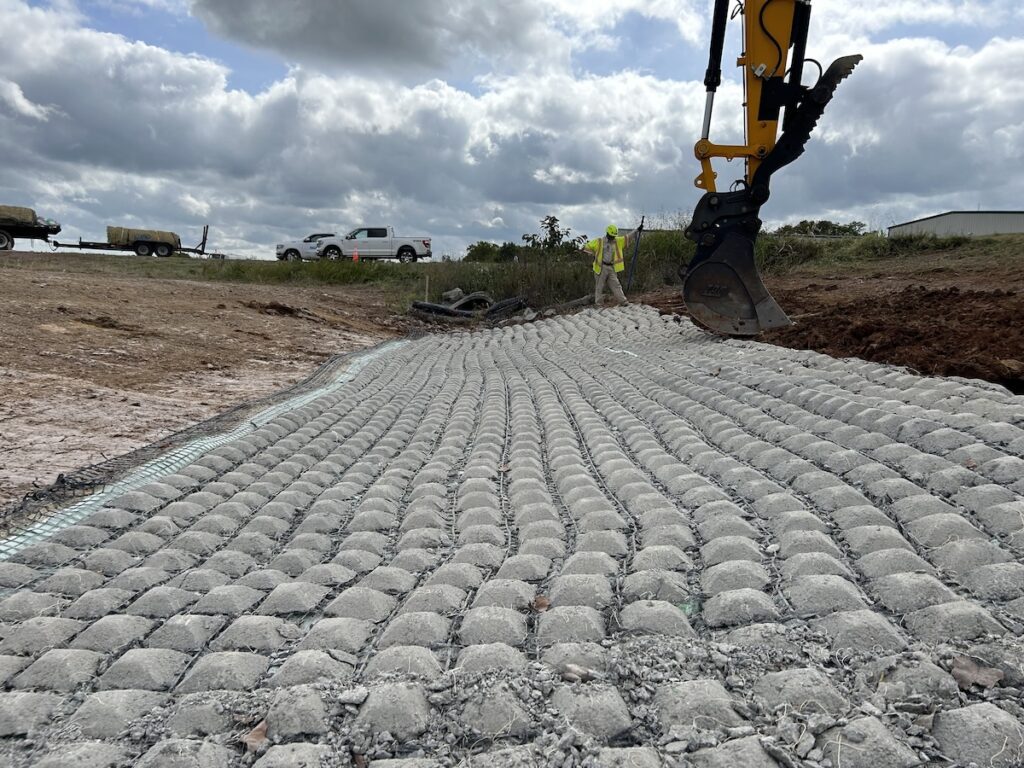

Flexmat plus installed in channel at airport project

Featured Flexamat Project

Manassas Regional Airport

Flexamat was the only solution for this runway rehabilitation project in Virginia because the concrete block mat meets FAA standards in the obstacle free area.

See the Project
